Download Agent

General Info

In Mediatek devices, a Download Agent (DA) is a special file containg code that is sent to the device through BROM or Preloader via serial communication.

The DA allows through specialized tools (like SP Flash Tool, mtkclient and penumbra) to perform a variety of specified actions on the device, most notably:

• Reading and writing flash
• Read and Write RPMB (Through DA Extensions or a a specialised DA)
• Get info on the device (Chip ID, MEID, OTP ver…)
• Read and Write e-fuses
• Unlock or relock Seccfg (Through DA Extensions)

A Download Agent operates under three different protocols (ordered from oldest to newest):

• Legacy (V3)
• XFlash (V5)
• XML (V6)

Download Agent stages

A DA file contains two stages: DA1 and DA2.

DA1

The first stage (DA1) is responsible to initializing the platform and environment for allowing then to boot the second stage. DA1 (on secure chips) is bound to DAA (Download Agent Authorization) to allow to continue. The Preloader will verify the signature of the first stage against the Public Key. If DAA doesn’t pass, the first stage won’t be loaded and an assertion will happen.

Exploits like Kamakiri allows to temporarily disable phone security protections (SLA, DAA and SBC) to be able to load an arbitrary patched DA1.

After the first stage is loaded, only some commands are available, most notably cmd_boot_to, which is used to load the second stage (DA2). The boot_to cmd includes some protections, like hash and secure boot checks for allowing the incoming second stage to load.

Carbonara abuses a flawed implementation of this cmd to overwrite the DA2 hash contained in DA1, disrupting this way the whole root of trust and allowing to load an arbitrary payload.

DA2

The second stage (DA2) is what’s responsible to use the full suite of commands, such as writing, reading and formatting partitions, writing efuses, read and write RPMB (before 2024).

DA2 can optionally implement DA SLA, a form of authentication similar to Preloader / Brom SLA, that (if present) needs to be completed before being able to execute any command.

Before some still unknown time in 2024, DA2 also implemented the boot_to cmd, which allowed DA Extensions to be arbitrary loaded with a patched second stage.

Download Agent Structure

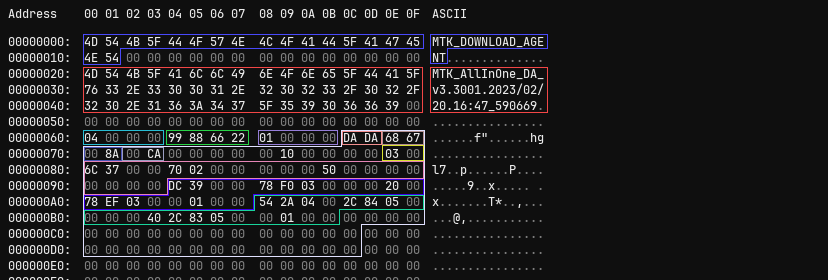

DA V5 structure

Between Legacy, XFlash and XML DA, the structure varies with small differences, but generally it’s quite consistent.

Data found	Offset	Description
DA File Magic String	0x0-0x12	Always MTK_DOWNLOAD_AGENT
DA File ID	0x20-0x60	In XFlash: MTK_AllInOne_DA_v3 In XML: MTK_DA_v6
DA Version	0x60-0x64	Seem to always stay 4 in all DA files I’ve analyzed
DA Magic	0x64-0x68	Always 99886622
Number of SoC	0x68-0x6C	How many DA entries are in one file. One DA File can contain multple DAs for many SoC
DA Entries	0x6C-0x??	Each DA entries contains metadata on the DA and their regions. On Legacy, the size of each DA entry is 0xD8, while on XFlash and XML it’s 0xDC

Each DA Entry has this structure (offset are adjusted using 0x0 as the beginning of the DA entry)

Data found	Offset	Description
Magic	0x0-0x02	Seems to always be DADA
HW Code (chipset)	0x02-0x04	Which chipset this DA entry works on (e.g. 6867 (LE) → 6768)
HW Sub code	0x04-0x06	Chipset subcode (most likely to identify with revisions of the same chipset)
HW Version	0x06-0x08	Probably another Identifier for the chipset revision
Entry region index	0x10-0x12	Seem to always be 0
Entry region count	0x12-0x14	How many regions this DA Entry has
Region table	0x14-0xDC on XML and XFlash, 0x14-0xD8 on Legacy	Metadata on each region. Each region is 0x20 bytes long

Finally, a region has this structure

Data found	Offset	Description
Offset	0x0-0x04	At which offset in the DA file this region starts
Length	0x04-0x08	Length of this region (Signature included)
Address	0x08-0x0C	Address in which this region will be sent and loaded into the device.
Region length	0x0C-0x10	Same as length, minus signature length
Signature length	0x10-0x14	How many bytes the signature of this region is long

For more information on how to parse a DA, I suggest looking at these resources:

• penumbra da parser

Download Agent Security

A DA can have some security measures.

• DA SLA (Not to confuse with Preloader or BROM SLA), after the DA2 gets uploaded and executed, auth will be required to continue. The auth is an RSA key, and can be usually be found in the SLA_Challenge.dll file if the DA can perform actions with SP Flash Tool.
• DAA (Download Agent Authorization, not DA specific, but needed for booting the DA), which verifies DA1 signature against the public key stored in the device efuses.
